Intel 233 or AMD K6-233, 266MHz
14.1" Active Matrix LCD
3D Graphic with 4MB RAM
24X CD-ROM / Opt DVD Drive
S-Video Out & Video Capture
102-key Full-Size Keyboard
Dual USB
RCA TV-Out & Video Capture
|
|
|

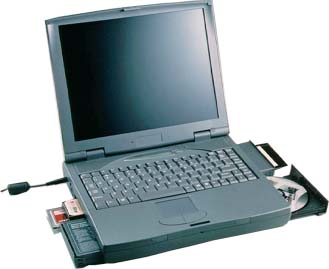

FM97XL Intel 233 or AMD K6-233, 266MHz 14.1" Active Matrix LCD 3D Graphic with 4MB RAM 24X CD-ROM / Opt DVD Drive S-Video Out & Video Capture 102-key Full-Size Keyboard Dual USB RCA TV-Out & Video Capture |
|||
|
|
|||||
| Bios | |
Keyboard |
|
Pointing Device | |
Core Logic |
| Phoenix Plug and Play BIOS | 88/89/90 keys, 19mm Pitch | Built-In Track Pad (PS/2). | Intel 430TX PCISet Core Logic | |||
| Audio System | |
CPU | |
Storage | |
Display |
| 16-bit
Stereo Sound System 3D Surround Sound Built-In 1MB hardware WaveTable Microphone, Earphone, and Line-In Ports |
Intel
PentiumŪ Processor w MMX Tech upto 233 MHz Intel Tillamook, 200, 233 and
266MHz. AMD K6-233, & 266MHz Processor SPGA, PPGA, or TCP on daughterboard |
Built-In
2.5" Hard Disk Drive (12.7mm/17mm) Removable 24X CD-ROM Removable 1.44MB 3-Mode Floppy Drive Optional LS120MB Floppy Drive Optional Internal 100MB Zip Drive |
64-bit
PCI Graphics Engine with hardware GUI Accelerator 4MB EDO Video Memory 12.1" TFT SVGA LCD Resolution up to 800 x 600 x 16.8M 14.1" TFT XGA LCD Resolution up to 1024 x 768 x 16.8M External Resolution up to 1280 x 1024 x 16.8M Colors |
|||
| Battery | |
Memory | |
PCMCIA | |
I/O Interface |
| Li-Ion
Battery Smart Battery Supports Secondary Battery |
Expandable
memory up to 128MB Supports EDO/SDRAM Supports One-Bank Operation 512KB synchronous pipelined-burst SRAM secondary cache |
1xType
II and 1x Type III slots Supports CardBus & Zoomed Video Port |
2xUSB
Ports 1xSerial Port (16550A) 1xParallel Port (ECP & EPP) 1xGame Port 1xExternal CRT Port 1xPS/2 Keyboard/Mouse Port 1xConnector for Port Replicator/Docking Station |
|||
| Dimensions | |
Power Mgmt | |
AC Adapter | ||
| 12.4"(W)x10.2"(D)
x2.2"(H). 7.4 lbs. |
Doze, Sleep, Suspend, Hibernation Modes | Auto-Switching, 50 Watts, 90-264V/50Hz-60Hz | ||||
| For hard drives, GB=billion bytes. 8x DVD ROM drives read a minium of 4463 Kbps and maximum of 10820 Kbps. ITU V.90 modems are designed only to allow faster downloads from K56flex - or V.90- compliant digital sources. Maximum achievable download transmission rates are currently unkown, may not reach 56Kbps, and will vary with line conditions. CD-RW drive data transfer rates may vary as follows: for recording to CD-R Media, the data transfer rate may vary from 150 to 600 Kbps; for writing to CD-RW media, the data transfer rate may vary from 150 to 300 Kbps; for reading to CD Media, the data transfer rate may vary from 1500 to 3600 Kbps. 24x Max CD-ROM data transfer rates may vary from 1500 to 3600 Kbps. | ||||||
    |
||||||
